BOX TYPE HEAT TREATMENT FURNACE

Box Furnace | Batch Heat Treatment of Small and Medium Parts

For small and medium mechanical parts, dies, prototypes and mixed small batches. Assess loading envelope, supports, process curve and door access before specifying the effective heating zone and heating system.

Technical conditions and tags
Small and medium partsDoor loading and unloadingBatch productionCustom designs require operating-condition checks
Loading envelopeWidth × height × length
Loading conditionsWorkpieces, spacing and furnace tooling
Working temperatureDetermined by material and process
Handling conditionsClear door opening and access route
View typical configurations

Check the envelope formed by workpieces and tooling before specifying the working zone, door opening and temperatures. Determine the effective heating zone under agreed conditions.

Suitable workpieces and conditions to exclude

Assess workpiece shape and loading or conveying first to determine suitability for a box furnace design.

Usually suitable for assessment

Small and medium mechanical parts, dies and prototypes

For varied, small-batch work loaded through the door, heated and discharged by batch.

Assess by loading method

Parts supported by baskets, trays or hearth plates

Check tooling strength at temperature, part spacing, bottom supports and clear door opening.

Compare furnace types

Large heavy parts, long shafts or steady continuous batches

Compare bogie-hearth, pit or continuous furnaces to avoid difficult handling and poor chamber utilization.

Conditions usually suitable for assessment

  • Parts can be handled safely through the door; loading envelope and operating space are defined.
  • Production suits one batch per furnace cycle, with acceptable changeover frequency and batch timing.
  • Baskets, trays or hearth plates meet high-temperature load and thermal-cycling requirements.

Conditions to confirm before a quotation

  • Material grade, dimensions, unit mass, quantity per batch and net load.
  • Continuous working and maximum temperatures, heating/cooling curves, soaking and cooling method.
  • Door direction, handling tools, building space, utilities and acceptance criteria.

Distortion also depends on material, incoming condition, loading supports, heating/cooling rates and cooling method. Furnace-temperature uniformity alone cannot guarantee it.

Five dimensions of box furnace configuration

These are configuration options to confirm against operating conditions.

Heat source

Resistance heatingNatural-gas heatingAssess other fuels separately

Circulation method

Natural convectionForced circulationCheck airflow guides against the load

Loading method

Hearth plateBasket / trayDedicated tooling

Furnace atmosphere

AirProtective atmosphereControlled atmospheres require sealing and interlocks

Cooling route

Furnace coolingAir cooling outside the furnaceTransfer to a cooling station
Box resistance furnace with lifting door and chamber

Batch resistance heating

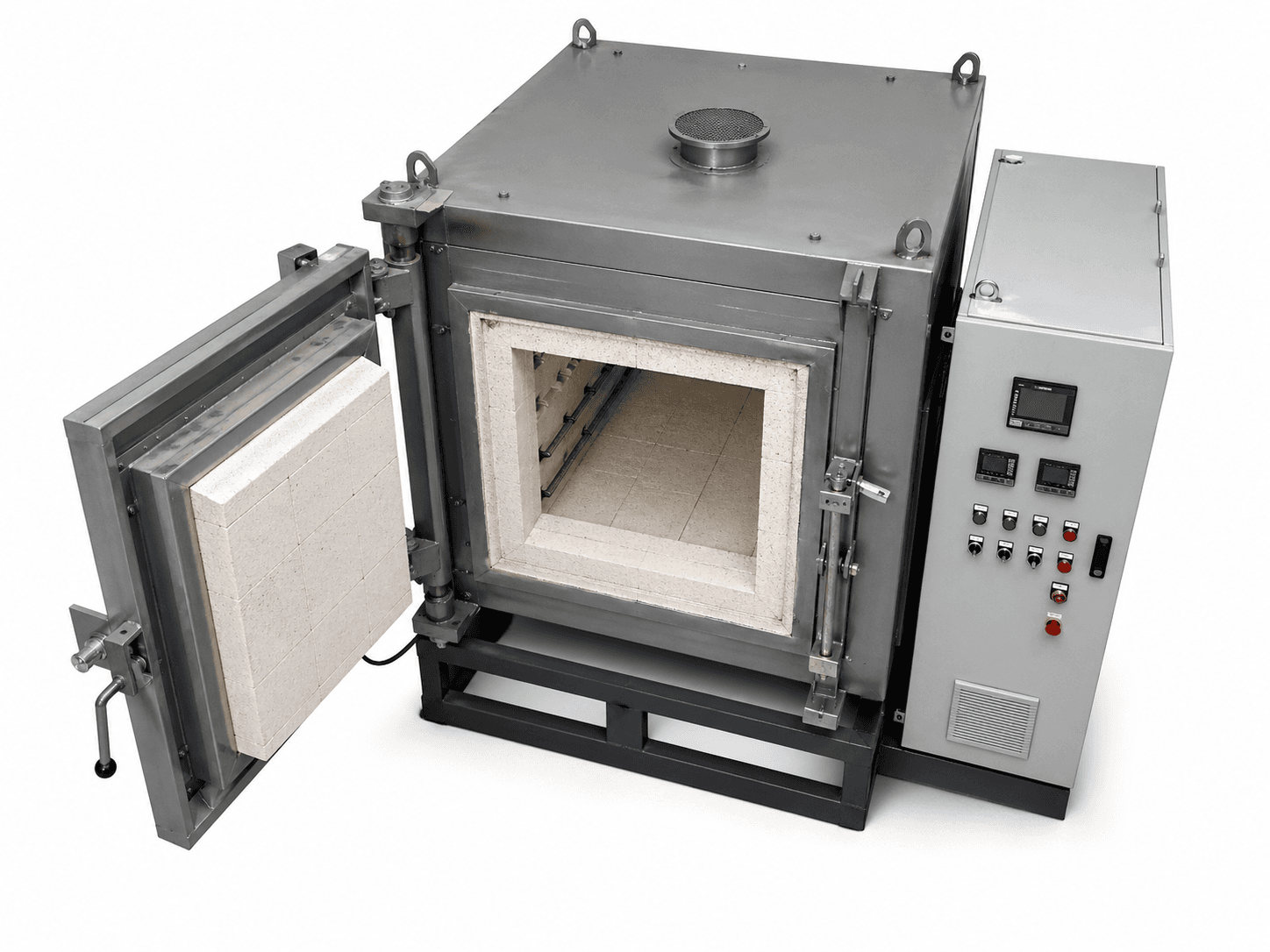

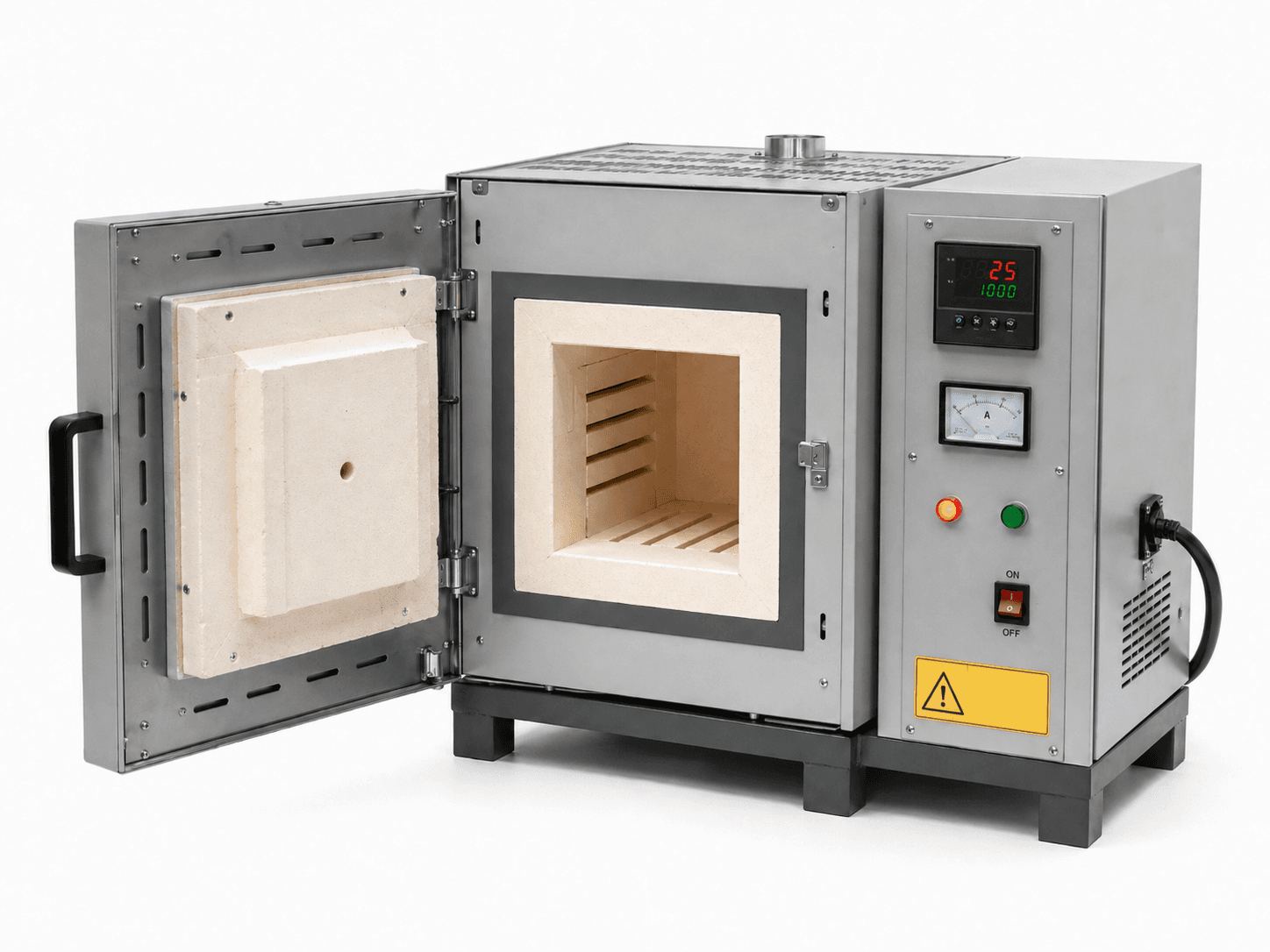

Natural-convection box resistance furnace

For batch heat treatment of small and medium parts with defined process and loading conditions.
Forced-circulation box furnace with a side fan inlet, external drive and internal airflow baffle

Circulation and airflow guidance

Forced-circulation box furnace

Select circulation fans and airflow guides jointly from temperature, loading and process targets.
Box-furnace door, loading tray and chamber

Sealing and purging

Protective-atmosphere box furnace

Confirm door seals, purging, discharge, monitoring and safety interlocks as a complete system.
Complete unit comprising box furnace, quench tank and transfer mechanism

Steady batch production

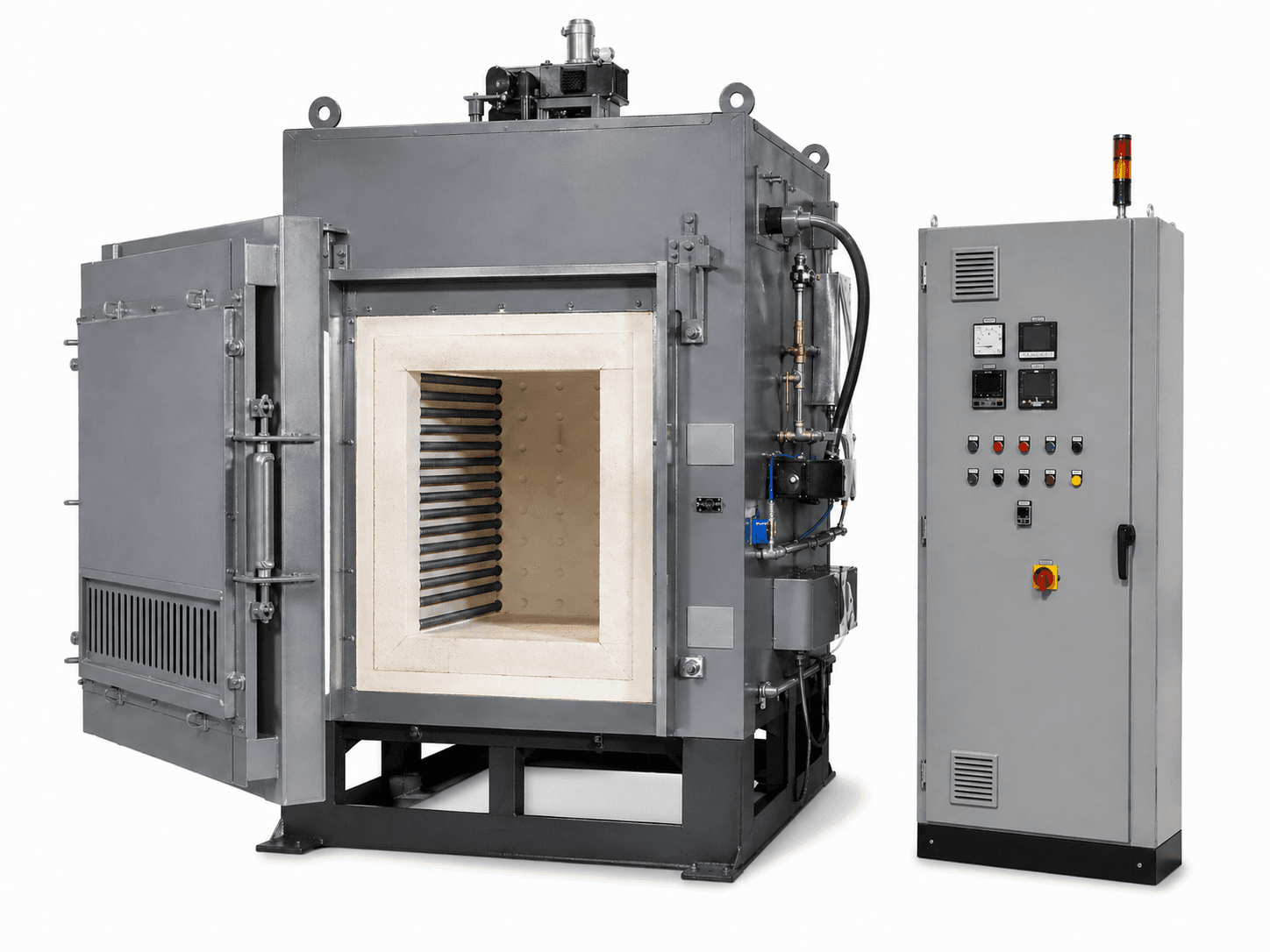

Production box furnace

Configure around loading frequency, door operation, traceability and maintenance.

Swipe sideways to compare; the solution name stays on the left.

Compare designs and verify inputs before quoting
ConfigurationBetter-suited conditionsMain advantageRequired checksDo not promise without verification
Natural-convection box resistance furnaceSmall and medium parts, small batches and mixed batch productionStraightforward structure configured around the effective zone and loadingLoading envelope, door opening, tooling and temperature-control zonesDo not guarantee temperature spread or heating time without defined loading
Forced-circulation box furnaceLow- and medium-temperature conditions requiring enhanced convectionAirflow guides can improve flow distribution through the loaded areaFan temperature rating, airflow path, loading resistance and service spaceA circulation fan does not establish temperature-uniformity performance
Protective-atmosphere box furnaceConditions requiring control of oxidation, decarburization or surface stateA dedicated design can address gas flow and door sealingGas composition, dew-point target, sealing, discharge and interlocksProtective gas supply does not replace surface-quality acceptance criteria
Production box furnaceProduction requiring stable batches, process records and equipment interlocksDesign furnace, supports, controls and operating boundaries togetherDuty frequency, records, interlocks and wear-part maintenanceDo not promise cycle time with incomplete output data

Capability boundaries: effective zone, loading and site

Separate working space, loading/conveying variables and structural variables to create a verifiable design.

Effective heating zone≠Structural chamber dimensions
Net workpiece load plus furnace tooling≠Permissible hearth-structure load
Box-furnace refractory lining, heating elements and load-bearing hearth
Calculate chamber, opening, supports and heater layout around the effective heating zone and loading.

State boundary variables separately

Effective heating zone
Confirm using the agreed temperature-measurement method; it is not simply the chamber's inner dimensions.
Loading envelope
Includes workpieces, spacing and furnace tooling; keep separate from effective heating-zone dimensions.
Thermal load
Workpiece and tooling masses both enter heating-time and power calculations.
Structural load
Check hearth plates, supports and tooling for high-temperature conditions and load distribution.
Clear door opening
Must accommodate handling tools, part orientation and safe operating space.
Capability commitments
Maximum dimensions, load and temperature spread require technical review.
Data required for a usable design
Data groupItems to confirm
WorkpieceName, material, maximum dimensions, unit mass, batch quantity and surface state
ProcessContinuous working and maximum temperatures, curves, soaking time and cooling method
Furnace chargingBaskets / trays / hearth plates, arrangement, spacing and handling tools
QualityEffective zone, records, hardness / microstructure / distortion and acceptance criteria
ProductionBatch timing, changeover frequency, annual operating time and maintenance windows
UtilitiesElectricity or gas, flue exhaust, building space, foundations and installation boundaries
Box resistance-furnace technical requirements and testingGB/T 10067.44-2014 (box resistance furnaces only)GB/T 10067.1-2019GB/T 10067.4-2005GB/T 10066.4-2004GB/T 5959.1-2019 (electroheating installations only)GB 5959.4-2008 (resistance-heating installations only)
Effective heating zone, electrical and general safetyGB/T 9452-2023GB/T 37752.1-2019GB/T 5226.1-2019
Conditional references for gas-fired designsGB/T 19839-2025 (reference for industrial oil and gas burners only)

Box Furnace: structures and pre-quotation checks

Structure examples explain components. Final layout depends on workpieces, process, load, cycle and site conditions.

Cutaway of box-furnace body, door, lining, heaters and load supports
Loading structural diagram…
  1. Furnace body and lining
  2. Heating elements
  3. Roof structure
  4. Lifting door
  5. Supports and tooling
Box-furnace structure example; configuration varies with temperature, atmosphere, load and operation
View original image

Five structural inputs to confirm before quoting

  1. 1
    Maximum loading envelope Wload × Hload × Lload (mm)

    Include workpieces, spacing and tooling in the complete envelope.

  2. 2
    Unit / net workpiece / tooling mass (kg)

    Calculate thermal load and hearth structural load separately.

  3. 3
    Continuous working / maximum temperature / process curve

    Used to design lining, heaters, power and control zones.

  4. 4
    Door opening method / clear opening / handling route

    Check space for side-opening or lifting doors and tool access.

  5. 5
    Atmosphere / cooling route / records and interlocks

    Atmosphere is a system, not a single connection.

1

Furnace body and lining

Determine from effective zone, temperature class, thermal cycling and maintenance boundaries.

2

Heating and temperature control

Design resistance or gas systems for power, zones and available utilities.

3

Roof and maintenance structure

Confirm roof insulation, load-bearing members, access openings and service space for the temperature and structure.

4

Door and sealing

Confirm opening, clamping, seals, insulation and safety interlocks together.

5

Supports and tooling

Design hearth plates, supports, baskets and trays for high-temperature loads.

6

Electrical controls and safety

Agree on temperature control, records, alarms, emergency stops, door interlocks and data interfaces.

Six common purchasing and technical questions

These answers explain selection boundaries, not the final technical design or contract annexes.

Small and medium mechanical parts, dies, prototypes and varied small batches that can be handled safely through a door are candidates. Still check loading envelope, unit mass, net load, tooling and process curve.

A box furnace usually serves smaller parts handled through a door. A bogie-hearth furnace moves the entire loaded bogie into and out of the chamber and better suits large or heavy parts. Compare handling, load, rails/foundations and chamber utilization.

The effective heating zone is the working space evaluated for temperature uniformity under agreed conditions. Structural chamber dimensions also accommodate lining, heaters or combustion, airflow guides and safety clearances. They are not interchangeable.

No. Confirm gas composition, purging, door seals, discharge, monitoring, alarms and safety interlocks, and document surface-quality acceptance conditions.

Provide grade, maximum dimensions, unit mass, quantity per batch, net load, tooling, continuous working and maximum temperatures, process curve, door-loading method, atmosphere, cooling and site utilities. When comparing quotations, align the effective heated zone, load and tooling, heat source, circulation and atmosphere configuration. Confirm separately whether loading and unloading equipment, cooling equipment, controls and recording, installation and commissioning, and site utilities are included. Do not compare furnace chamber dimensions and total price alone.

First agree on the test temperatures, effective heated zone, unloaded or representative loaded conditions, tooling arrangement, measurement points and recording method. Assess the results against the applicable standard and technical agreement. Where circulation or a protective atmosphere is used, define its operating conditions during testing. Verify the furnace temperature field, actual workpiece temperatures, and surface or property results separately. Instrument control accuracy alone cannot establish that the whole batch meets requirements.
